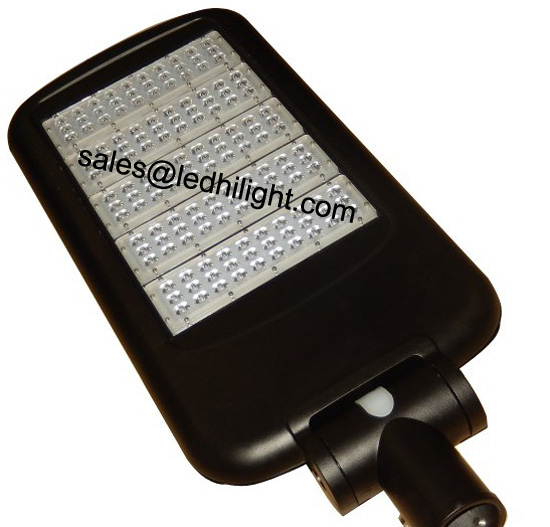

LED 120W Street Light

LED 120W Street Light LED 120W Street Light
Product name:LED 120W Street Light
Item:HB-ST120W
Details:

Special Features:

1. Meanwell Driver with 5-7 years lifetime

Meanwell Driver with unique technology , lasting 5-7 years.So our LED streetlight lifespan can reach 40,000 hours, and according to 12 hours working per day, it can be constantly used for more than 5-year.



2, LED

A,  Original  45mil Bridgelux  LED

B, High CRI: 80

C, Super bright LED ,  over 120Lm/w



3.Build-in Z –Diodes

Even if one led failed, the remaining LEDs will still work.



4.Warranty Policy

5 years warranty with original written warranty ; 20,000 switch cycles(on/off switching).

5, Simple

      It is easy to use and install with the instruction manual .



Technical Specification:

Item NO.

HB-ST120W

LED power

120w

LED Source

Bridgelux  LED

LED Initial Flux

14400Lm

Power Efficiency

90%

 Luminous Uniformity

0.6

Color Temperature

WW

3000K±300

CW

5700K±500

Average CRI

WW

Ra80

CW

Ra75

Bean Angle

Horizontal Axis:120

Vertical Axis :80

Light Distribution Curve (Beam Pattern)

Asymmetric(Bat Wing )/Rectangular Beam

Input Voltage

90~245VAC

Frequency Range

50/60HZ

Power Factor (PF)

0.95

Total Harmonic Distribution(THD)

16%

Storage Temperature

-40℃--+80℃

Working Environment

-40℃--+50℃:10%-95%RH

Junction Temperature (Tj)

60℃±10%(ta=25℃)

Light Body and Lampshade Material

Aluminum Alloy and PC

Working Lifetime

50000hrs

IP Rating

IP 65

Weight

13kg

Product Size (mm)

774*350*100mm
